In 2004, while flipping through a copy of Time magazine, I was struck by the work of photojournalist David Burnett. He was on the campaign trail shooting John Kerry’s failed presidential bid. Burnett is up there with the best and has been covering presidents since JFK. Yet what made these photos stand out from the crowd, in addition to his seeing, of course, had to do with the lens and camera he was using. Burnett lugs to his assignments a vintage 4×5 Speed Graphic press camera equipped with a 7″ Aero Ektar lens dating back to 1943. It’s a beast of a camera/lens combo, producing images that make everyone in them look like miniature dolls driving toy trucks. That effect really stands out if the photographer is shooting at an angle to the subject. I knew then and there I had to try DIY tilt-shift photography and built myself a kit.

Children do cartwheels on Grand Isle beach in Grand Isle, La. August 15, 2009. Photo by Richard Alan Hannon.
Children do cartwheels on Grand Isle beach in Grand Isle, La. August 15, 2009. Photo by Richard Alan Hannon.

How I Made My DIY Tilt-Shift Lens Kit

Back then, I was shooting with Nikon DSLR cameras. My push/pull ‘focusing’ mechanism was a rubber boot for a motorcycle’s suspension purchased at an auto parts store and cut to size. I used a Nikkor lens mount from an old for-parts off-brand lens. And I found an eBay seller that had the female Bronica mount. These two mounts are screwed into two pieces of clear Lexan painted black and cut into circles with a hole saw, that fit snugly into the two ends of the cut boot. The boot was much longer than what I used. It doesn’t take a lot of pushing and pulling to go from macro to infinity on a 35mm frame.

Used 2 ¼ Bronica lenses back then were dirt cheap, but sharp. My trinity of lenses were a 50mm Zenza 2.8, 75mm Zenzanon PE 2.8 and 150 mm f/4 Zenzanon MC.

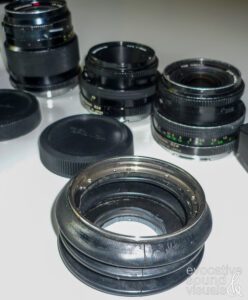

My former DIY tilt-shift lens system made up of a 50mm Zenza 2.8, 75mm Zenzanon PE 2.8 and 150 f4 Zenzanon MC. Photo by Richard Alan Hannon
My former DIY tilt-shift lens system made up of a 50mm Zenza 2.8, 75mm Zenzanon PE 2.8 and 150 mm f/4 Zenzanon MC. Photo by Richard Alan Hannon

These days, there’s an app for making this kind of photography, right? So, why bother making a DIY version? If you’re like me, you’ll find that doing it the old-fashioned way far outweighs any digital smartphone fakery.

Unlike Burnett’s setup, my lens/bellows idea had no rails to keep them in place. This means finding focus and holding it. This isn’t easy, especially when subjects are on the move. Plus, depth of field is next to nothing. To use mine is to constantly flex, squeeze, pull and swing. This becomes a lens tango with the subject, and it’s quite rewarding when you get a keeper.

I’ve gotten a few. Please have a look below:

Angola Prison Rodeo

Louisiana Scenes

A Few More Pics

Would you like to purchase these images? Get in touch at sales at evocativesound dot com.

Me, left, posing for a tintype photographer at the 2009 Port Hudson Civil War re-enactment.
Me, left, holding my DIY tilt-shift lens and posing for tintype photographer Bruce Schultz, at the 2009 Port Hudson Civil War re-enactment.
